BRIDGE Submerged Arc Welding (SAW) Wire
Available Diameter (mm): 2.5 / 3.2 / 4.0 / 5.0Mechanical Performance of Deposit MetalGradesTensile Strength MPa (N/mm²)Yield Strength (MPa)Elongation A (%)Impact Energy (J)H08A430-600≥330≥20≥27 (-20℃)H08MnA430-600≥330≥20≥27 (-20℃)H08MnMoA550-740≥460≥17≥27 (-20℃)H10M
-

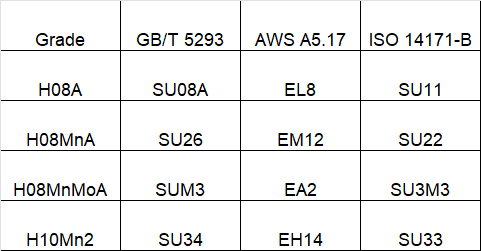

Standard:
GB/T 5293
AWS A5.17
ISO 14171-B - WhatsApp:+44 736311459
- Office: Jianfu Industrial Park, No.79 Wengexing Road, Liaobu Town, Dongguan City, Guangdong Province
- Email: info@coboltwelding.com
Product description
Available Diameter (mm): 2.5 / 3.2 / 4.0 / 5.0

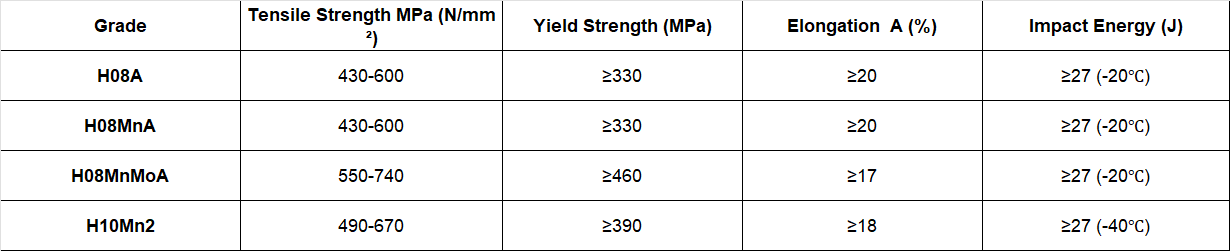

Mechanical Performance of Deposit Metal

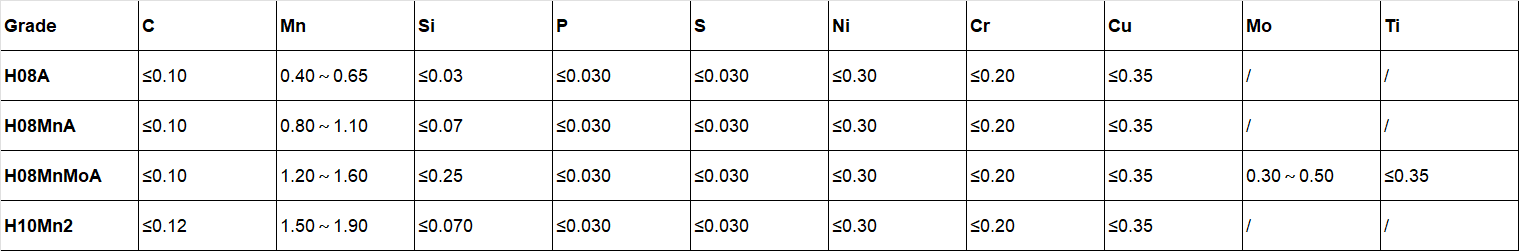

Chemical Composition (%)

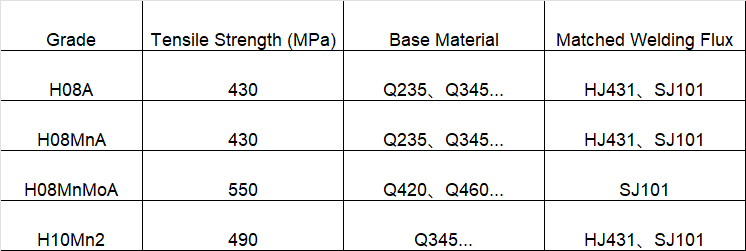

Application: Common applications include shipbuilding, pressure vessels, bridges, construction machinery, building equipment, and steel structures.
Characteristics: This non-alloy fine-grained steel submerged arc welding wire delivers excellent process performance with smooth bead appearance.

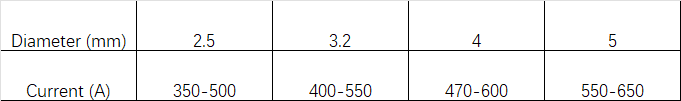

Welding Parameters
Current Polarity: DC+ (Direct Current Electrode Positive)
