ATLANTIC CHE557MoV/E5515-G P High-Strength Steel Welding Electrode
Brand Name: CHE557MoVGB/T 5117 E5515-G PAWS A5.5 E8015-GIS2560-B-E5515-GPAvailable Diameter (mm): 2.5 / 3.2 / 4.0 / 5.0CHE557MoVis abasic-coated fine-grained steel electrodeforall-position DC+ welding.Delivers excellent process performance with superiorductility,
-
Standard:
Brand Name: CHE557MoV
GB/T 5117 E5515-G P
AWS A5.5 E8015-G
IS2560-B-E5515-GP - WhatsApp:+44 736311459
- Office: Jianfu Industrial Park, No.79 Wengexing Road, Liaobu Town, Dongguan City, Guangdong Province
- Email: info@coboltwelding.com
Product description
Brand Name: CHE557MoV
GB/T 5117 E5515-G P
AWS A5.5 E8015-G
IS2560-B-E5515-GP
Available Diameter (mm): 2.5 / 3.2 / 4.0 / 5.0
CHE557MoV is a basic-coated fine-grained steel electrode for all-position DC+ welding.
Delivers excellent process performance with superior ductility, toughness, and crack resistance in deposited metal.
Applications:
On-site installation welding of 14MnMoVN medium-heavy plates in large hydropower turbine spiral cases
Critical structures requiring high crack resistance:
• 15MnVN/15MnV high-strength steel mining vehicles
• Chemical vessels etc.
Mechanical Performance of Deposit Metal
Tensile Strength MPa (N/mm²): 630
Yield Strength (MPa): 540
Elongation A (%): 24
Impact Energy (J): -40℃＝64

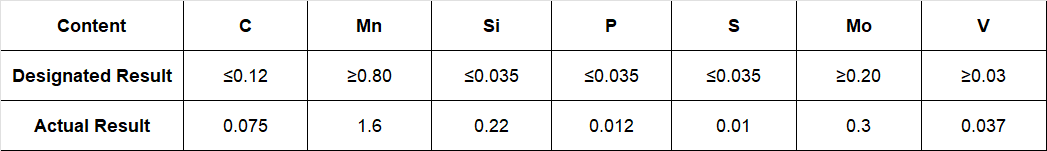

Chemical Composition (%)

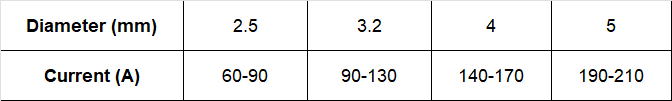

Welding Parameters
Current Polarity: DC+ / AC
Precautions:
Baking: 350–380°C × 1–2 hours; immediate consumption after baking.
Pre-cleaning: Remove rust, oil, and moisture from base metal.
Non-preheat welding: Maintain continuous arc; minimize interpass dwell time (especially for initial passes).
Technique: Short arc with narrow bead weaving.
